Product Overview
Specifications
Terminal of a circuit (such as an amplifier) or an electrical output port, components, parts, or means for receiving electrical power for the dummy load.
Basic requirements: impedance matching and withstand the power.
| BRAND | AHUAGO |
| Maximum Power in | 10 WATT |
| SWR | 1:1.0-1.11 |
| Frequency | DC-6GHz |
| Resistance Range: | 50 ohms, ± 5% |
| Operating temperature | -55° ~ + 155° |
| Size: | 17 x 50mm |
| Weight | 20g |
PACKAGE CONTAIN:

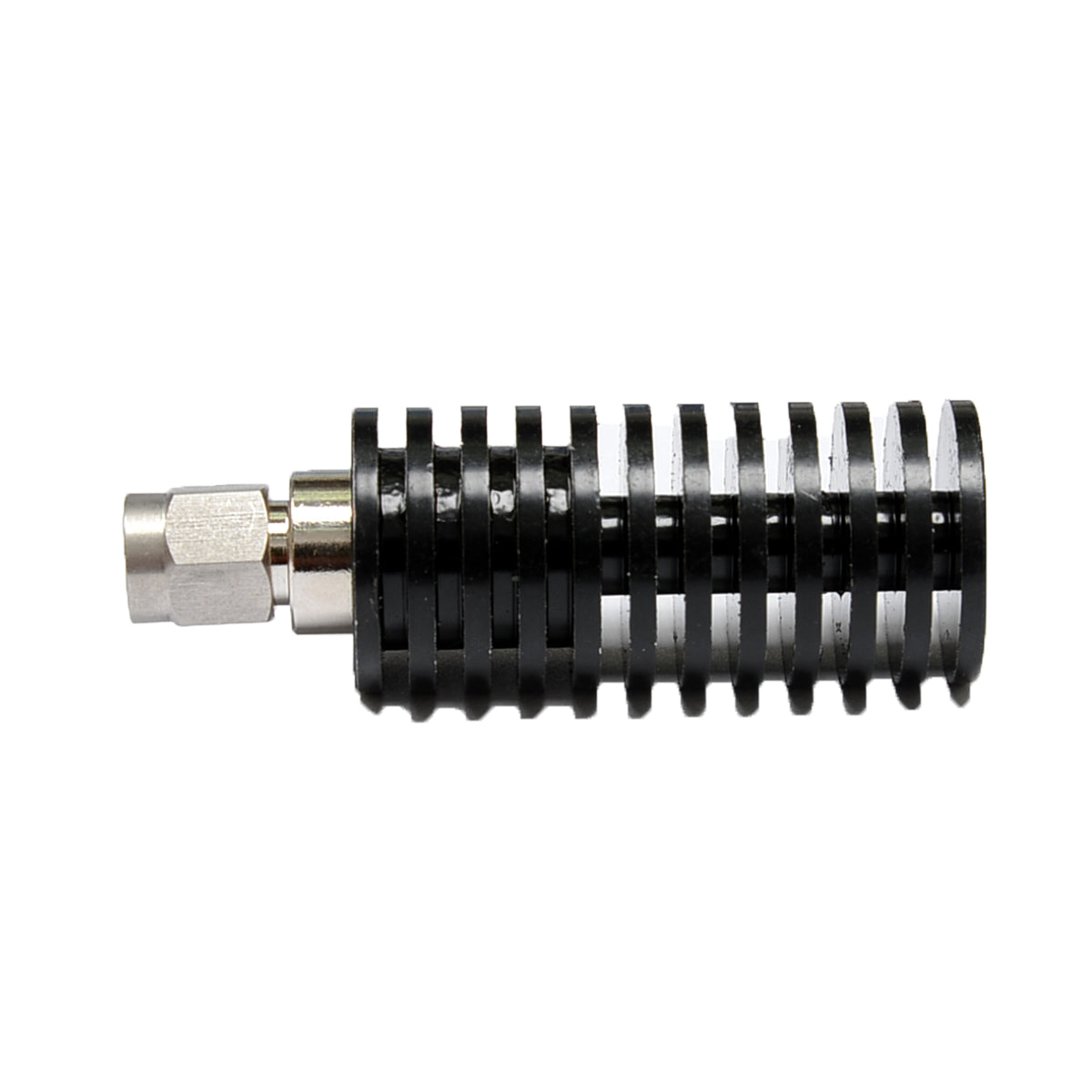

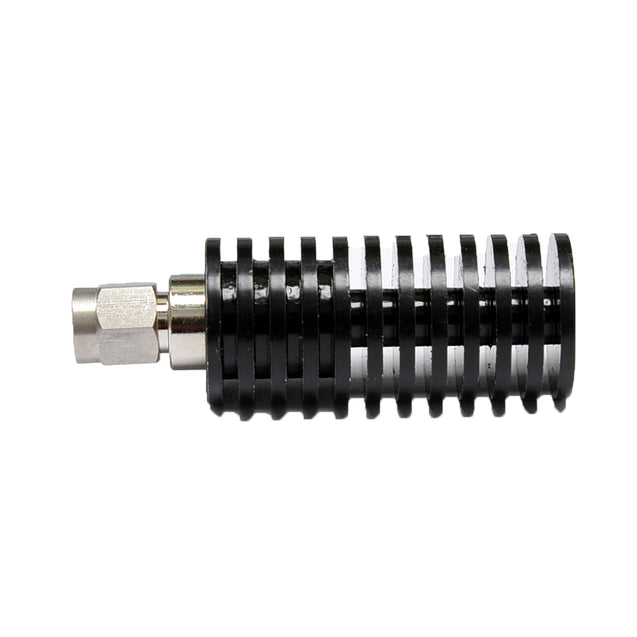

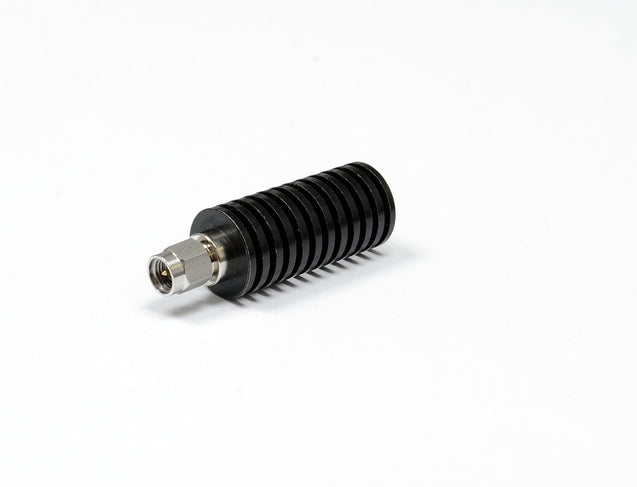

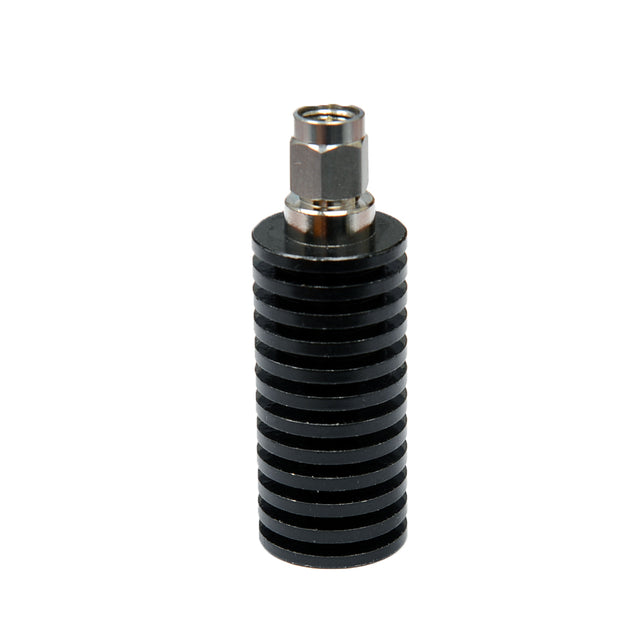

1x 10W SMA DC 0-6GHz dummy load
*Radio and SW-33 are not included
