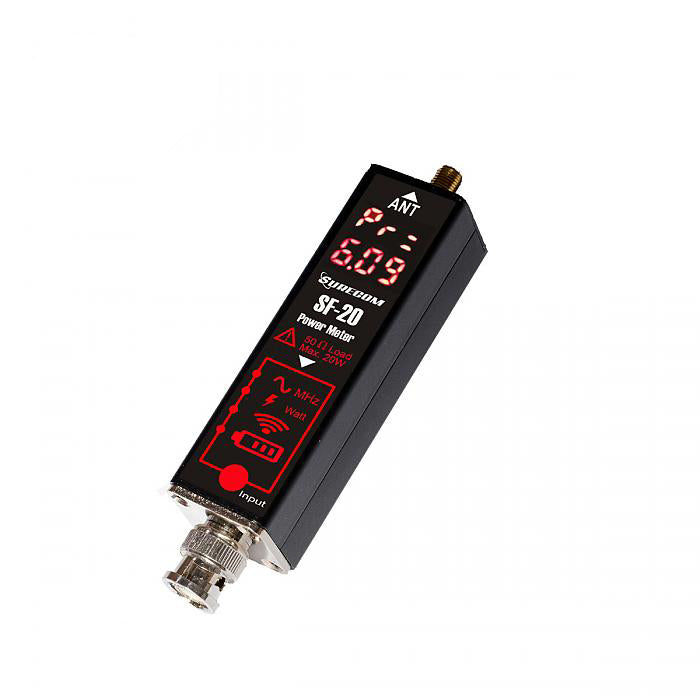

Product Overview
Features:
1) Power readout directly in digital form without any calibration.
2) Maximum measurable power range up to 20W.
3) Check your radio power output wattage and radio frequency under a second.
4) Easy connection with handheld radio.
Specifications:
Measurable power range: 0.1-20W
Maximum power input: 20W
0-10W (Measuring can not be continued for more than a minute)
10W-20W (Measuring can not be continued for more than 30 seconds)
20W or more (Measuring can not be continued for more than 5 seconds)
Caution:
RF power over 20W may damage the 50Ω dummy load.
Metal body is heated while working.
Features function
Hold the red button for only 2 seconds then let go
Hold red button - "Power on" and "Frequency counter" mode
Push red button - "Power Meter" mode
Push red button - "Signal Level" mode
Push red button - "Battery Level" mode

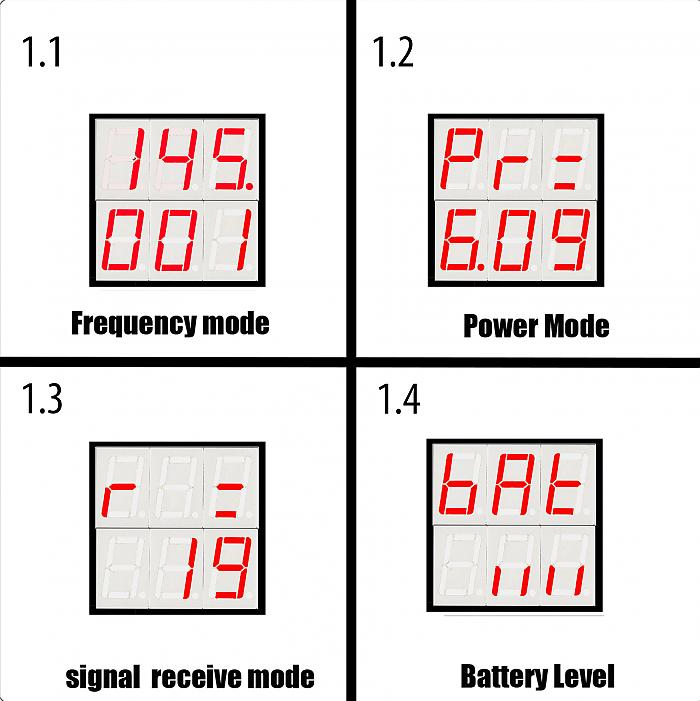

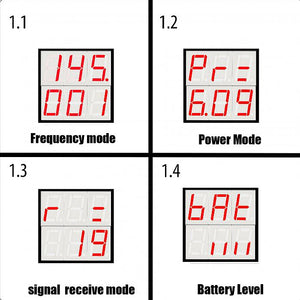

1.1) How to use Frequency counter.
Two ways to use the frequency counter meter:
A) Connect walkie-talkies with BNC
B) Receive radio signals from the top SMA antenna
Hold red button - "Power on" and "Frequency counter" mode
Connect the antenna to SMA.
20.000MHz to 999.999 MHz
1.2) How to use Power meter.
Hold red button - switch on
Push red button once to mode "POWER"
Connect the BNC to the radio output.
1.3) How to use signal input level.
Hold red button - switch on
Push red button twice to mode "receive"
Connect the antenna to SMA.
1.4) How to check Battery level.
Hold red button - switch on
Push red button 3 times to mode "BAT"
