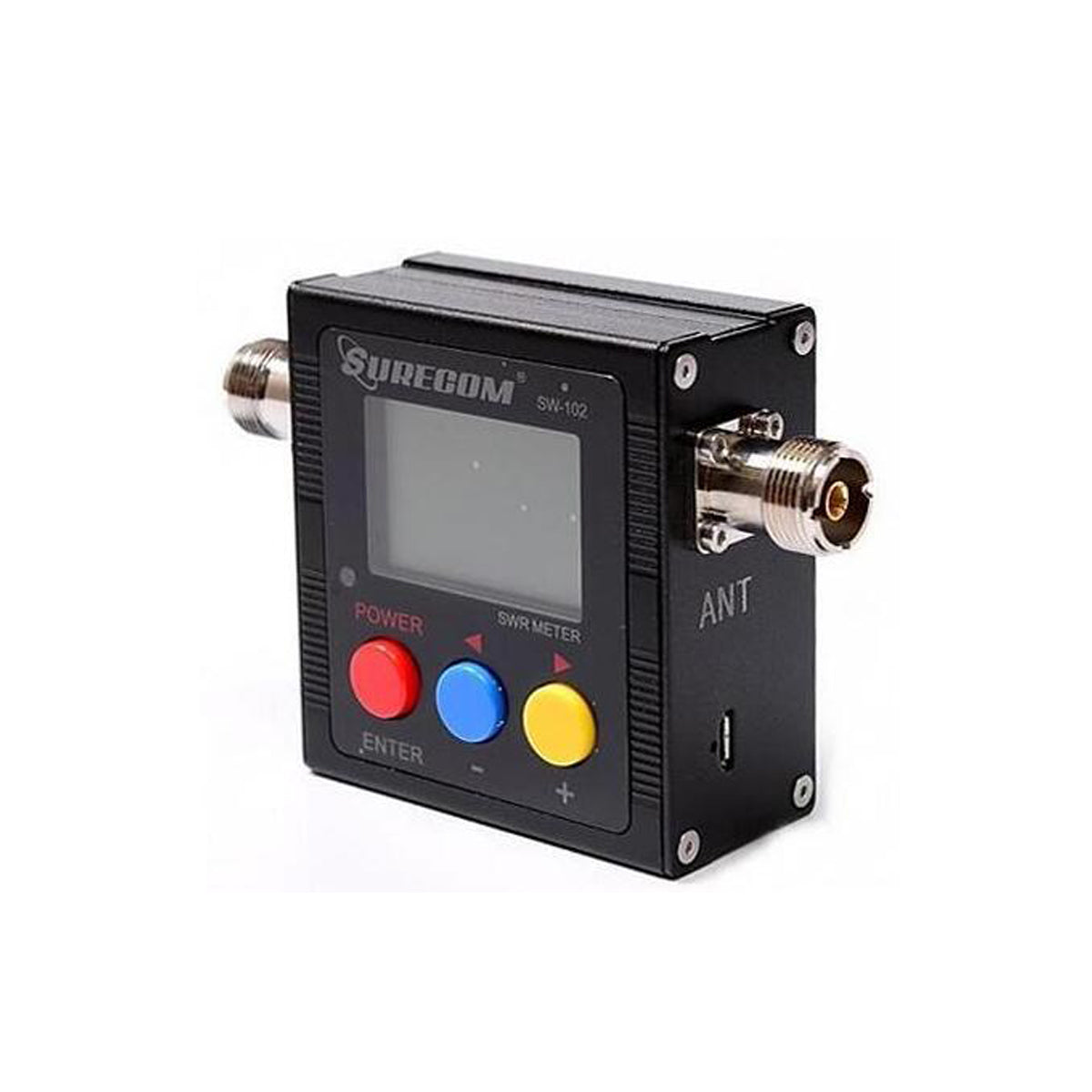

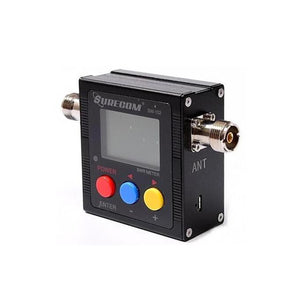

SURECOM SW-102 SO239 Connector VSWR Power Meter

409shop

(No reviews yet) Write a Review
US$78.80
Adding to cart… The item has been added

Product Overview

VSWR Meter Introduction

VSWR. Forward and reflected power direct digital readout, without any calibration.
Maximum measurable power range up to 120W.
Low insertion loss (0.3 decibels or less) structure allows it to be permanently connected.
Built-in Frequency counter.
All Function display (Frequency, Power, SWR, FW, RW, Battery Level)

Feature & Specification
Frequency range: 125 - 525MHz
Measurable power range: 0.5 - 120W (+-0.5%)
Input read frequency counter (must be < 0.5 W)
Maximum power: 120W
Impedance: 50Ω
Size: W 76 X H 77 X D35 mm.
Weight: < 220 grams
Battery: 3.7V Li-ion Rechargeable Battery

* Not for the DMR digital radio.

Interface: SO239

SURECOM SW-102 SO239 connector V.S.W.R. POWER METER



Power ON/OFF:

Press 2 seconds the [Red button] to power on or power off

MENU Display (Note: Version for up to V3.8)

SURECOM SW-102 SO239 connector V.S.W.R. POWER METER 409 shop



Set & Save:

  1. Press MENU [Blue button]
  2. Press F1 [Red button] (Select 1-5 Function)
  3. Press [Blue button] (-), [Yellow button] (+)
  4. Press the [Red button] for 2 seconds
  5. Press the [Blue button] to SAVE and EXIT



How to check the SWR of your Antenna:

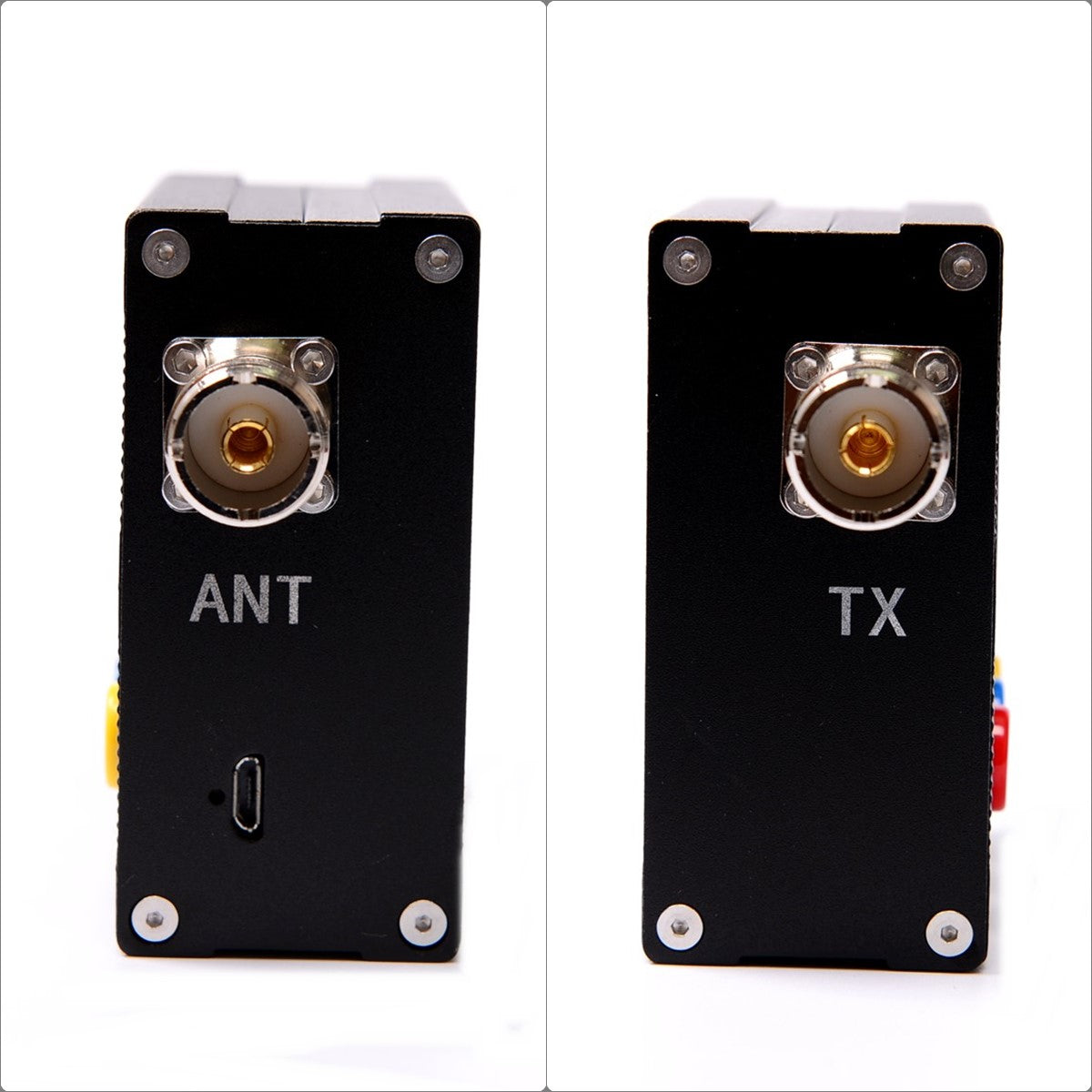

  • Connect to "TX" on Radio output and Antenna to "ANT". Proper adaptor/cable is required if your device has different type of connectors.
  1. Measurement VSWR: (see Pic.1)
  2. SW-102 TX connect Radio RF out
  3. Radio TX, SW-102 with display SWR measure data.
    Do not affect the test in the following cases, there are objects nearby, placed horizontally.



How to check the output Watt of your transceiver:

  1. Connect to "TX" on Radio output and dummy Load to "ANT". Proper adaptor/cable is required if your device has different type of connectors.
  1. Measurement Power: (see Pic.2)
  2. SW-102 TX connect Radio RF out
  3. SW-102 ANT connect 50 ohm Dummy Load
  4. Push Radio TX, SW-102 display is Power measure data.
    (SW-102 is not for DMR system)



  • Package Contents
  • 1x SURECOM SW-102-UV Power & SWR Meter (SO239 - connector)
  • 1x Power PSU 100-240V
  • 1x Charger Cable
  • 1x English Users Manual
